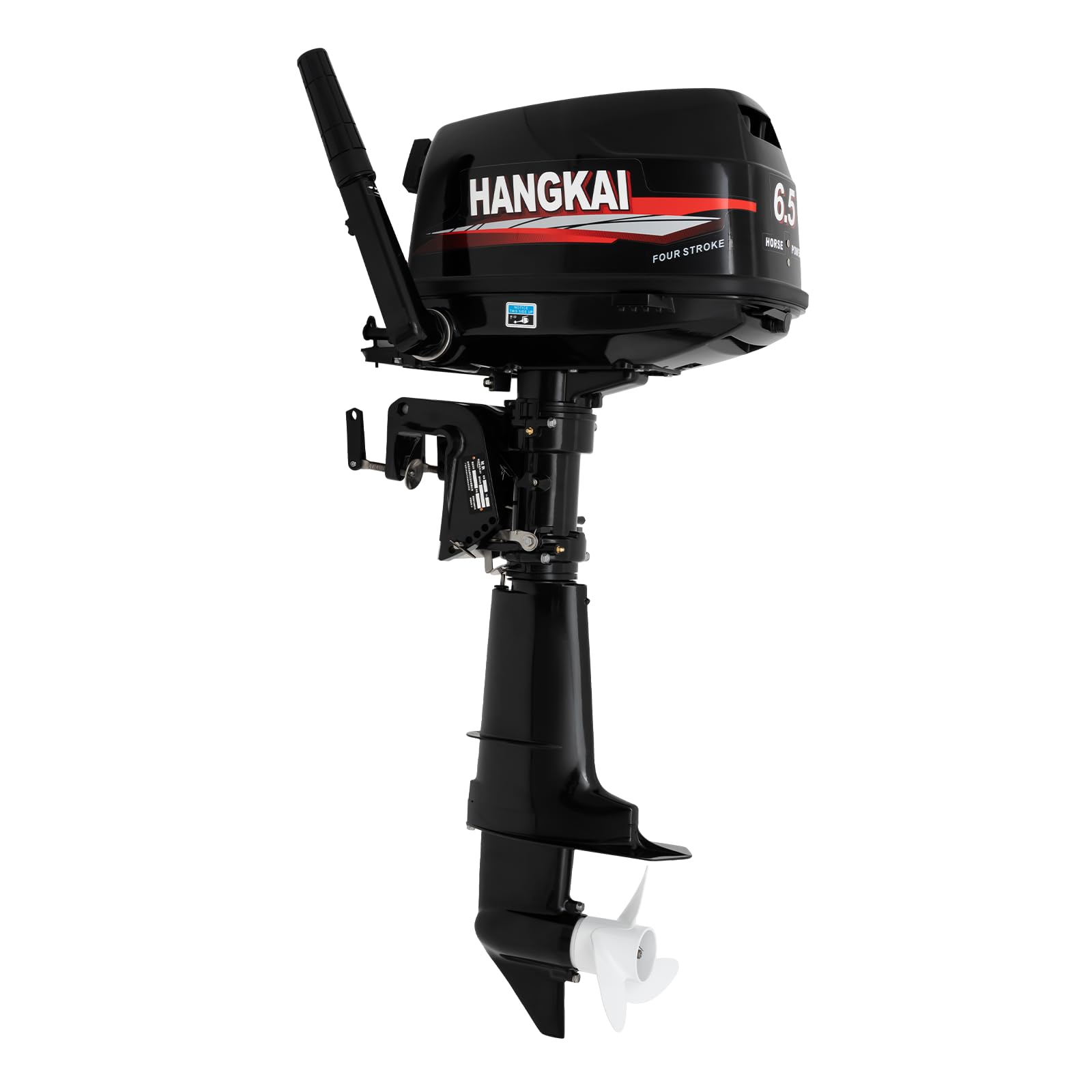

4 Stroke Outboard Motor, 123CC 6.5HP Boat Motor Boat Engine Motor, Heavy Duty Outboard Boat Motor Inflatable Marine Fishing Boat Yacht Engine (Fuel tank and Hoses Not Included)
4 Stroke Outboard Motor, 123CC 6.5HP Boat Motor Boat Engine Motor, Heavy Duty Outboard Boat Motor Inflatable Marine Fishing Boat Yacht Engine (Fuel tank and Hoses Not Included)
Couldn't load pickup availability


Specification
- Cylinder: 1
- Displacement: 123CC
- Gear ratio: 2.08(27:13)
- Max.speed(r/min): 5000-6000
- Gear Positions: F-N-R
- Ignition System: CDI
- Cooling System:Water-cooling
- Control System: Tiller control
- Starting System: Manual start
- Control System: #93 gasoline
- Recommended Lubricant: Four Stroke Lubricating oil
- Mixing ratio: Pure gasoline
- Trim and tilt system: Manual Tilt

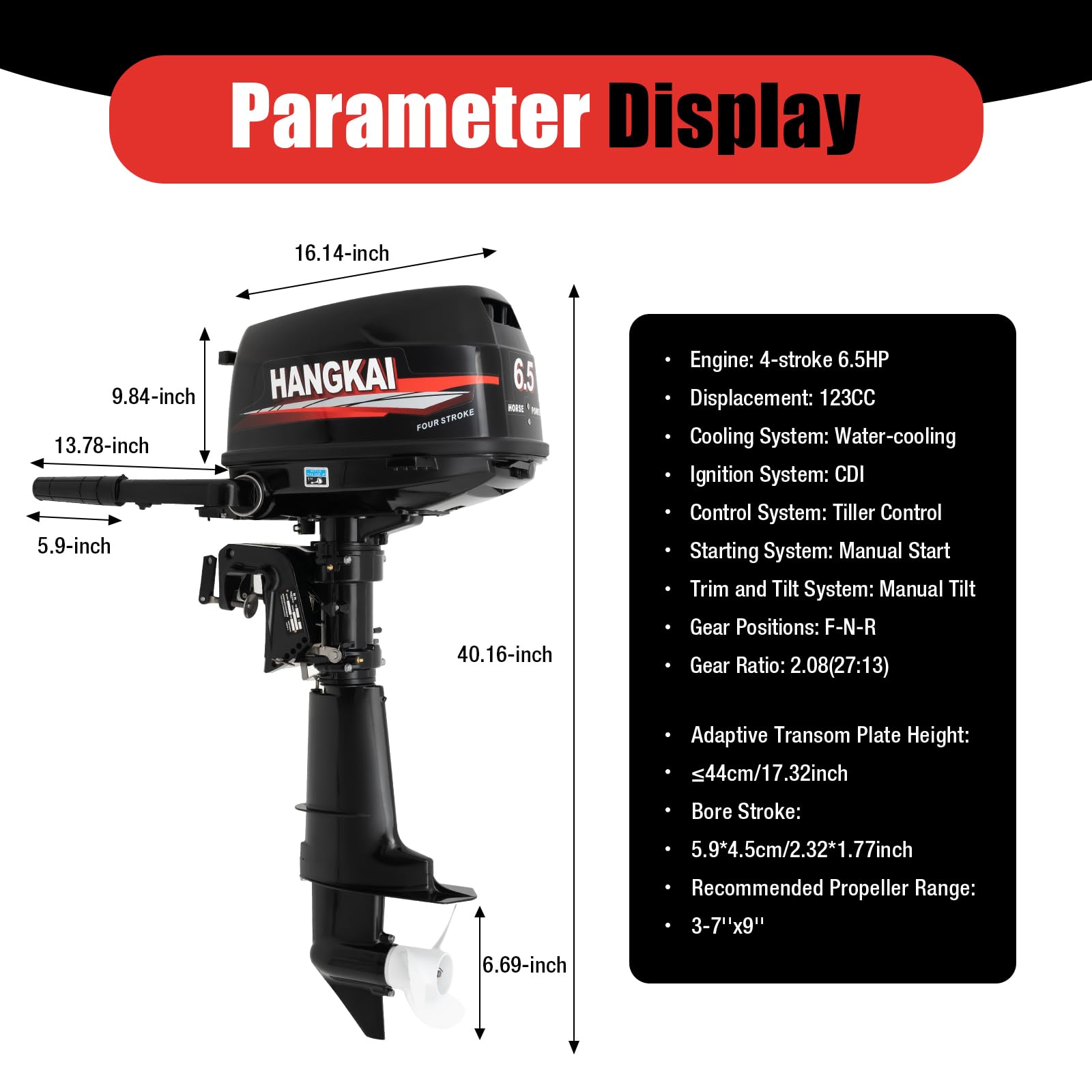

Dimension
- Short Shaft:40cm
- Packing size: 114x64x41cm
- N.W./G.W.(kgs): 26/31.2
- Bore x Stroke(mm): 59x45
- Recommended Propeller range: 3 -7"x9"
- Overall LxWxH(cm): 78.3x34.3x103.9
High-quality Material
High-quality aluminum alloy, combined with spray painting technology, has excellent corrosion resistance, wear resistance, heat resistance, impact resistance, deformation resistance, and other properties. You can use it in water with confidence.
Outstanding Performance

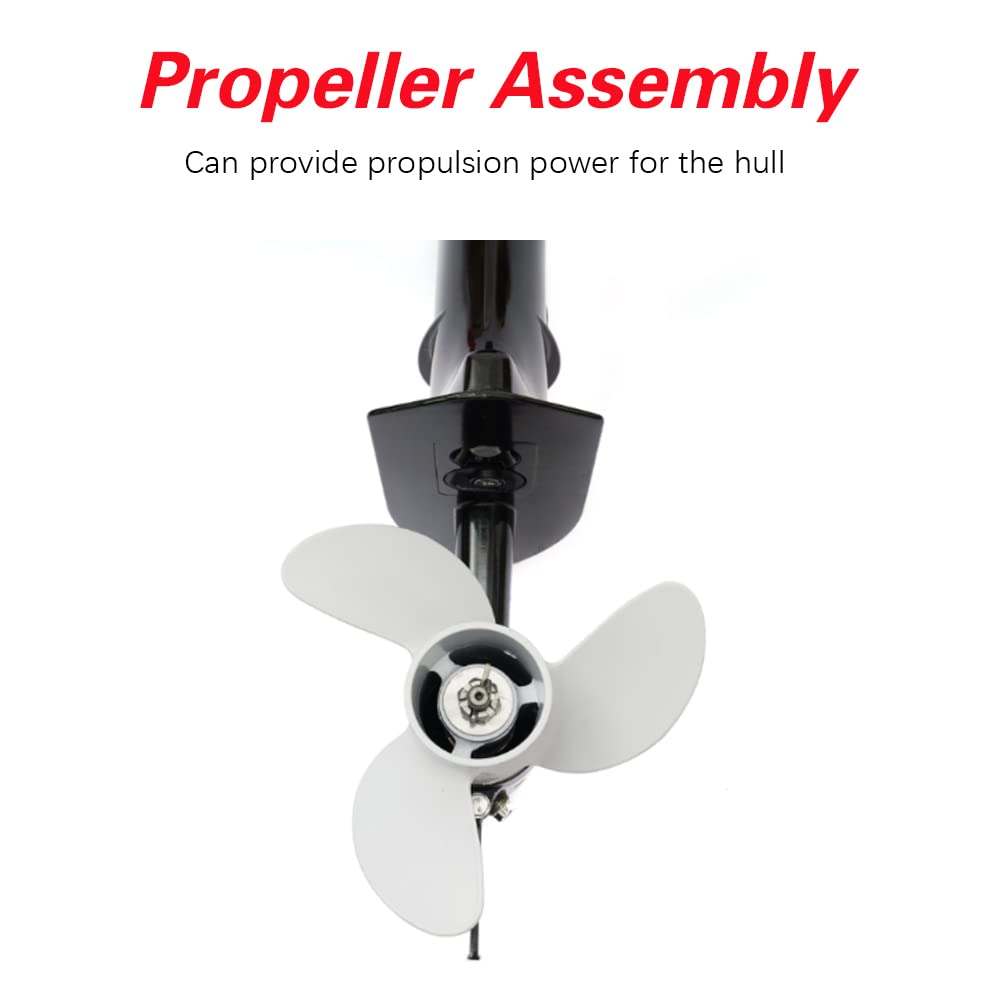

The 4-stroke 6.5hp engine with 5000-6000rpm can provide a speed of 5-20km/h to give you a comfortable and labor-saving sailing experience. Moreover, the three-blade propeller and streamlined design can reduce water resistance and provide greater power during operation.
High Safety

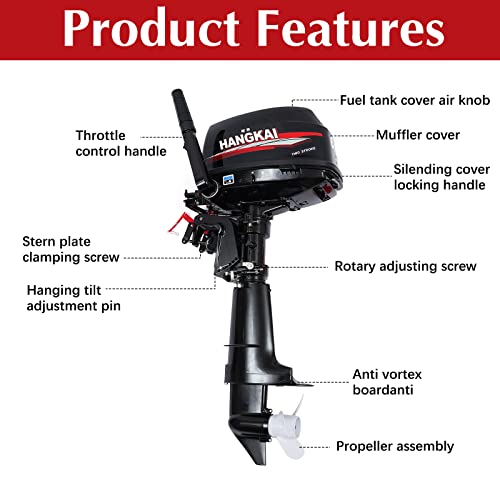

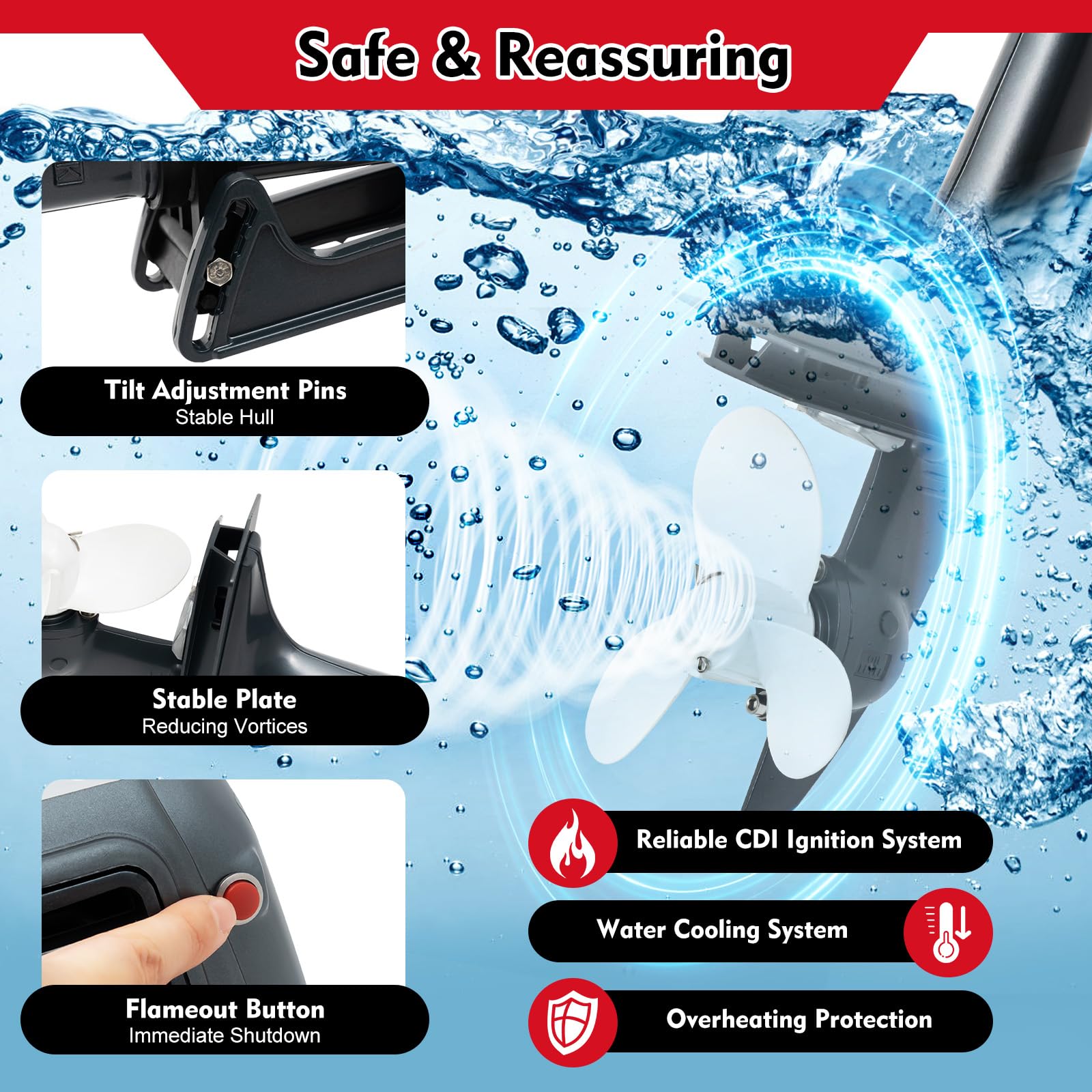

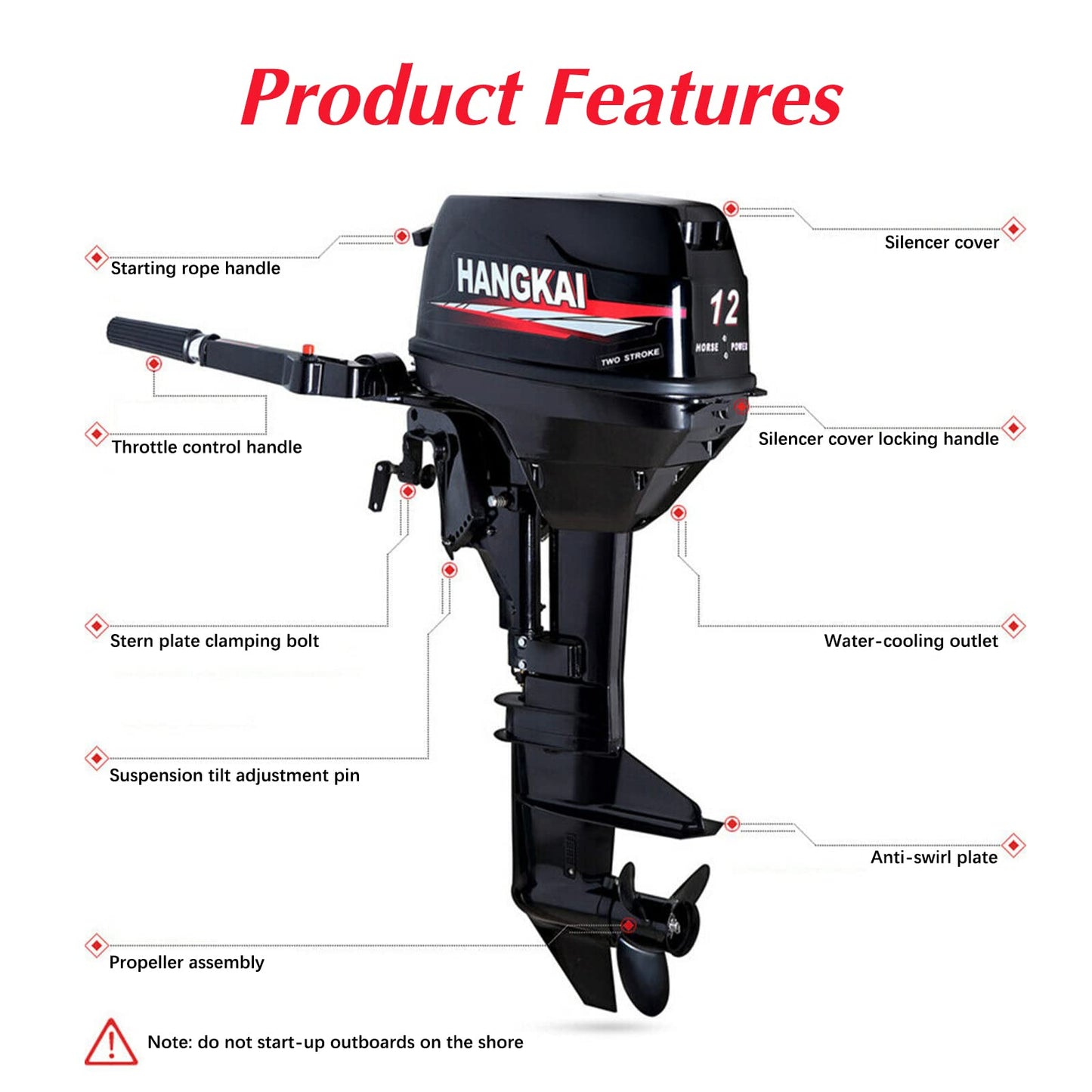

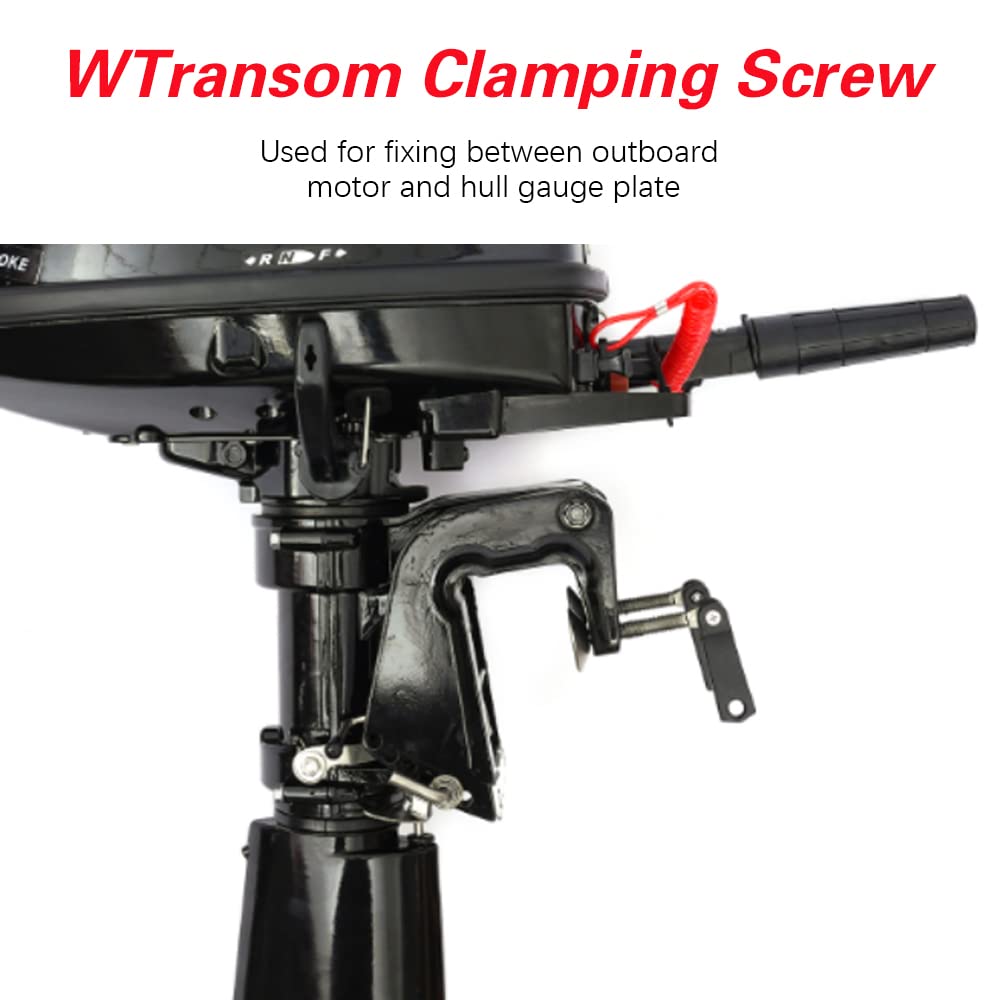

The water cooling system helps cool the engine for longer life. Suspension tilt adjustment pins can be used to adjust the boat's sailing attitude at any time to keep it sailing smoothly. The anti-swirl plate reduces swirl, allowing you to sail more safely. The emergency flameout rope can help you to turn it off quickly and use it more safely. The stern plate clamping bolt can securely secure it to the ship.
Low Fuel Consumption
It uses an advanced CDI ignition system and consumes only 0.52 gal/hour, which not only saves fuel but also reduces costs, making it economical.
Multi-gear Cruise
This product has three gears: forward, neutral, and reverse. By turning the throttle handle, you can achieve infinite speed change, or you can cruise at a constant speed so that you can enjoy different cruising experiences according to your needs.
Application
This outboard engine is suitable for inflatable boats, iron boats, plastic boats, fiberglass boats, wooden boats, etc. with a stern plate height of 17.32 inches or less. It is widely used in fields such as fisheries, aquaculture, and outdoor exploration.
Notice
About noise: | All gasoline engines have noise. We have not tested the decibel at present, but the noise is the same as that of motorcycles, which is a normal phenomenon. |
Load bearing: | The machine itself is light in weight and can be used on boats under 100kg, with a load of 4 people, but the speed of one person or 4 people is definitely not the same. Customers with high expectations for speed, take note. |
Essential: | You must have a boat motor mount or pegboard on your boat. When there is no water flowing out of the motor, please stop using it immediately, and then check whether the water pump impeller or water outlet is blocked. |
Note: | Please add gear oil to the gear before using the motor, and replace the gear oil after the running-in period (10 hours). Our outboards do not come with gear oil, please prepare yourself. |
![]()
4 Stroke 9HP
|
![]()
2 Stroke 6HP
|
![]()
2 Stroke 12 HP
|
![]()
2 Stroke 18HP Long Shaft
|
![]()
2 Stroke 18HP Short Shaft
|
|
---|---|---|---|---|---|
Customer Reviews |
5.0 out of 5 stars 3
|
4.4 out of 5 stars 41
|
4.8 out of 5 stars 7
|
4.6 out of 5 stars 3
|
4.4 out of 5 stars 41
|
Model | 4 Stroke 9HP | 2 Stroke 6HP | 2 Stroke 12 HP | 2 Stroke 18HP Long Shaft | 2 Stroke 18HP Short Shaft |
About this item
- ❌❌❌Fuel tank and Hoses Not Included
- 【4 Stroke 6.5 HP Outboard Motor】4 stroke outboard motor provides all the power you need to drive a small boat. Water cooling technology improves the reliability of the whole outboard motor. Lightweight, easy to carry, and large fuel tank capacity.
- 【CE Certification】This outboard boat motor can provide second-to-none fuel efficiency. The clean and pure gasoline fuel enables the emission target to reach the CE certification, which has contributed to the promotion of the green movement.
- 【Low Noise】This 4 stroke outboard motor adopts circulating oil lubrication system and direct bearing support precision, stable and quiet operation, reasonable design, lower noise, and more comfortable use.
- 【Note】You must prepare a marine motor bracket or hanging plate on your boat. Please add gear oil to the gear before using the outboard boat motors, and change the gear oil after the running-in period (10 hours).
- 【Gear Oil Filling Method】There is a screw on the gear box, unscrew the screw to add gear oil. Each outboard engine is filled with gear oil before leaving the factory, so it does not need to be refilled for the first time. After that, add it according to personal use and check it every ten hours.
Brand | BJTDLLX |
Color | 4 Stroke 6.5HP Outboard Motor |
Material | Aluminum |
Engine Displacement | 123 Cubic Centimeters |
Engine Type | 4 Stroke |
