Outboard Motor Engine 2 Stroke18HP Horsepower Long Axis, 246CC Gasoline Power Boat Motor Engine with CDI System, Mud Motor Kit for Width Less than 4.9 Feet and Length Less than 19.7 Inches

Brand: Goudergo

Color: 18HP 2 Stroke - Long Axis

Features:

• [Strong Power] 2-stroke 18hp engine (4500 to 5500rpm) provides strong power for you to drive fast and save a lot of time and energy.
• [Excellent Load-bearing Capacity] With solid aluminum alloy material and a powerful engine, the outboard engine has a maximum load of 2204 pounds to meet different needs. (The heavier the load, the slower the speed)
• [Excellent Endurance] Low fuel consumption, efficient two-stroke motor, and large capacity fuel tank (6.34 gallons) provide you with a long endurance to meet the needs of short/long distance travel.
• [Excellent Heat Dissipation] Many cooling holes and water cooling systems provide excellent heat dissipation to prevent the engine from burning out after a long time of use.
• [Flexible Steering] Forward, neutral and reverse gears, and a 360-degree steering function allow you to flexibly control the direction of the ship.
• [Easy Speed Regulation] Stepless speed change and constant speed cruise function make it easy for you to adjust the running speed and stable navigation at a constant speed to bring you a more comfortable user experience
• [Application] This outboard motor is suitable for small ships with different materials(width less than 4.9 feet and length less than 19.7 inches), such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is widely used in fishery, aquaculture, outdoor exploration, etc.

model number: 2 Stroke18HP Horsepower Long Axis

Part Number: 18HP

Details: Description
This kind of outboard motor is suitable for small ships of different materials (the length of the ship is greater than 3 meters, the net weight of the ship is greater than 60kg, the load of the ship is less than 1000kg), such as rubber boats, iron boats, plastic boats, glass fiber boats, wooden boats, etc. Widely used in fishery, aquaculture, outdoor exploration and other fields.
Details Three-blade Propeller: The three-blades propeller with a streamlined design provides you with greater power. Silencer Cover: The silencer cover can absorb the noise generated by the fan through the internal sound-absorbing material, thus providing a quieter working environment. Anti-swirl Plate: The anti-swirl plate can effectively reduce the turbulence of the waves and avoid water-wetting clothes. Gear Oil Filling Method:There is a screw on the gearbox, unscrew the screw to add gear oil. Gear oil is not filled before each machine leaves the factory, so please fill gear oil when using for the first time. After that, add according to personal use, and check every ten hours.

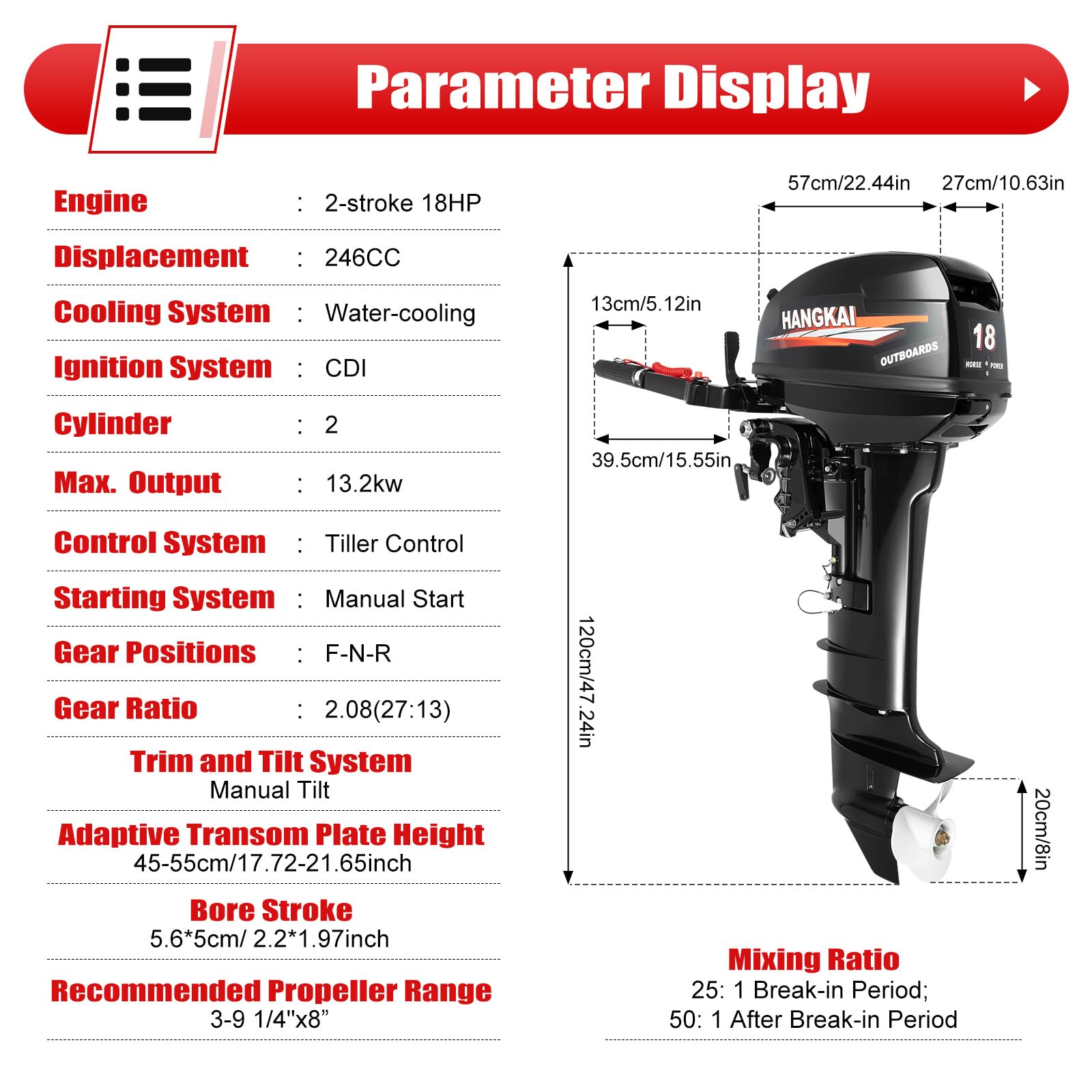

Specification Material: Aluminum Alloy Color: Black Model: 18HP Horsepower Long Axis Displacement: 246CC Gear Ratio: 2.08 (27:13) Number of Cylinders: 2 Speed: 4500-5500RPM Gear: F-N-R Refueling Method: 92 Unleaded Gasoline is Recommended Oil Tank Capacity: 24L/6.34gal Load-bearing Capacity: 500-1000kg/1102-2204lbs Ignition System: CDI Cooling System: Water Cooling Control System: Tiller Control Start System: Manual Start Propeller Specification: 23.5cm/9.25in (Length) * 20.3cm/8in (Diameter) Suitable Stern Plate Height: 45cm-55cm/17.7*21.7in Cylinder Diameter * Stroke: 56mm/2.2in*50mm/2in Recommended Engine Oil: 2 Stroke Engine Oil Mixing Ratio: Gasoline: Two-stroke Oil (25: 1 Break-in Period; 50: 1 After Break-in Period) Trim and Tilt System: Manual Tilt Net Weight: 42.5kg/ 93.7 lbs Gross Weight: 48.1kg/ 106.04 lbs Package Size: 133*71*38.5cm/52.4*28*15.2in Product Size: 57*27*120cm/22.44*10.63*47.24inch

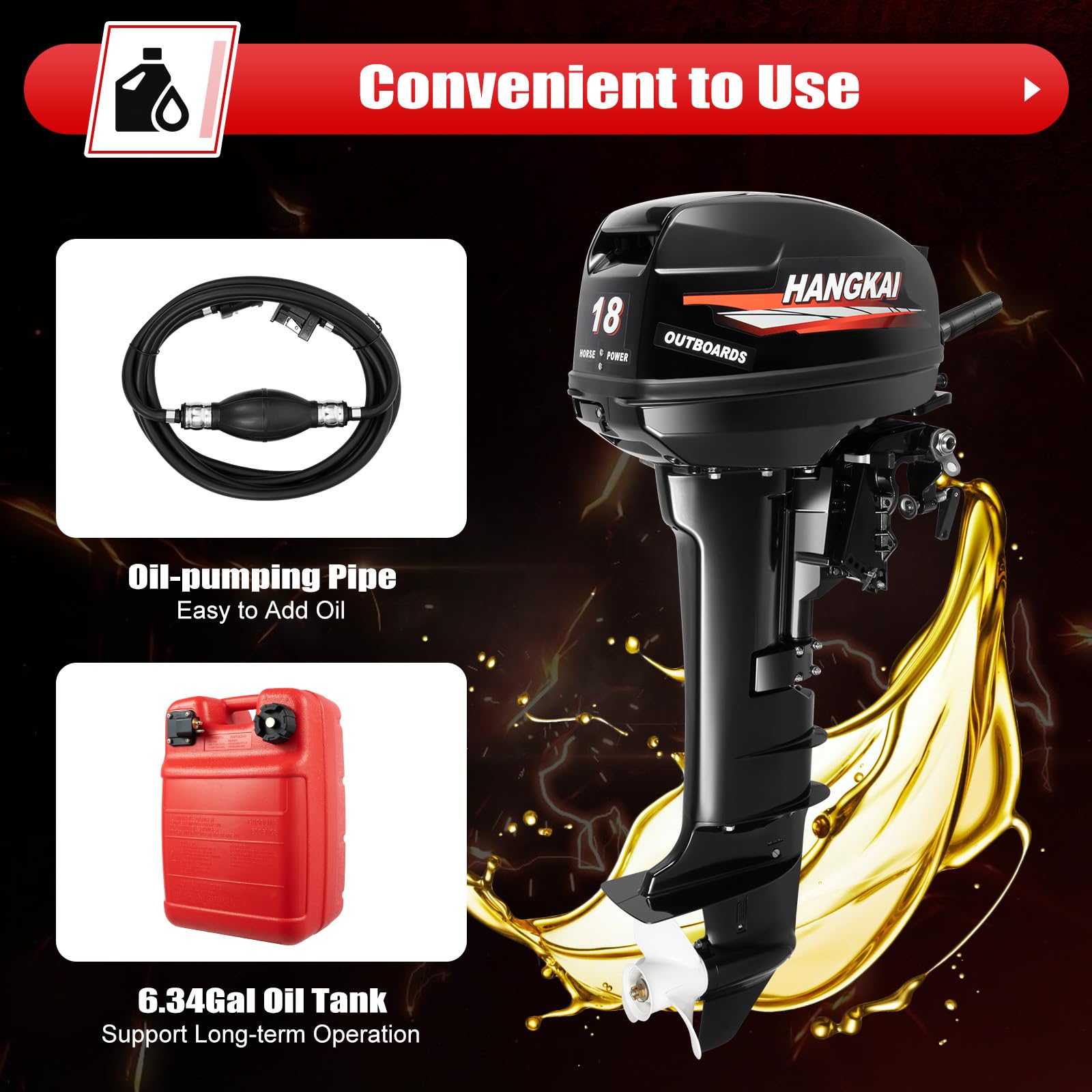

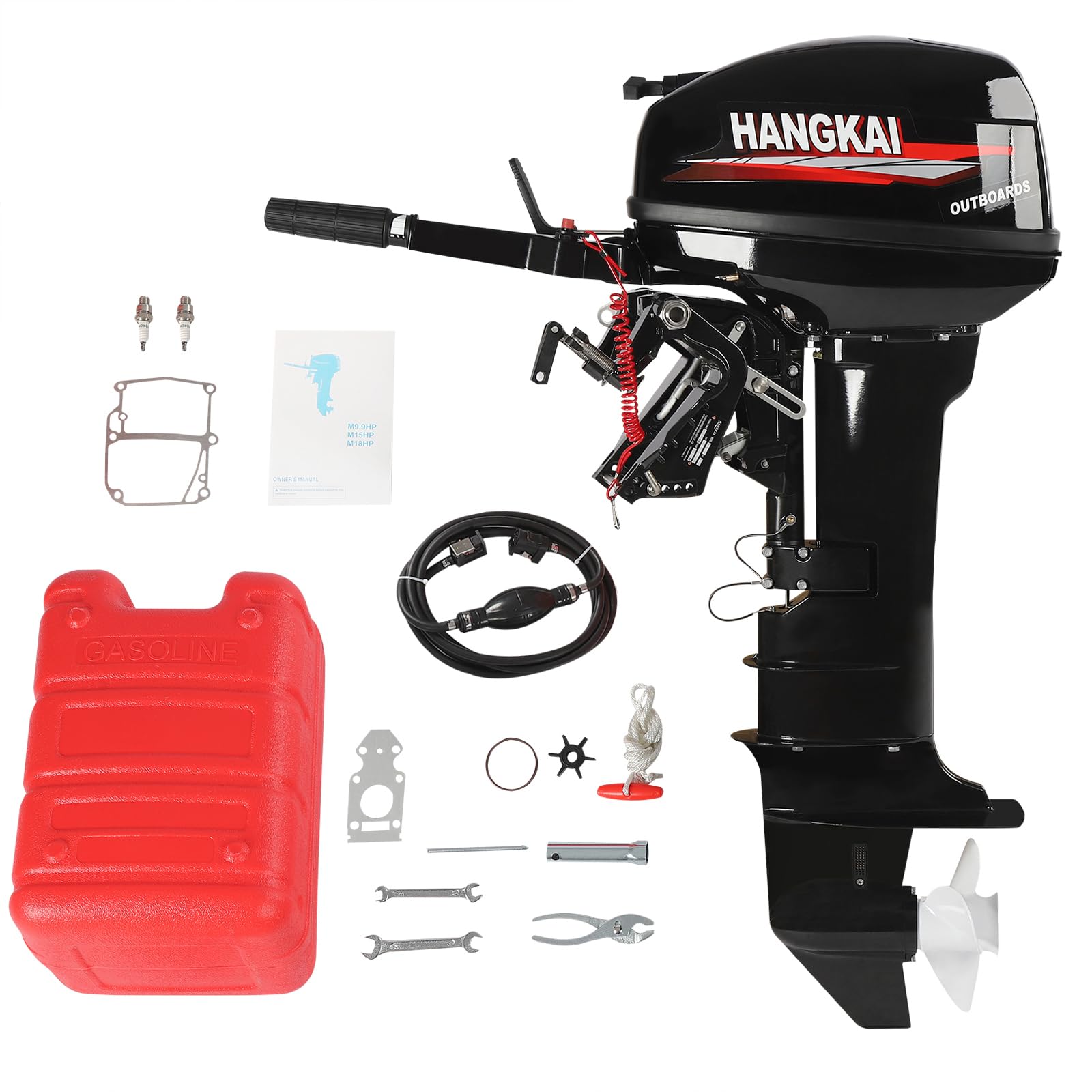

Package Included 1x Outboard Motor 1x Flameout Rope 1x Oil Pipe 1x Sealing Ring 1x Paper Pad 1x Spark Plug 1x Start Rope 1x Water Pump Impeller 1x Cotter Pin 1x Fuel Tank 1x English Manual Other Tools
Notes
1. The two-stroke outboard must use a mixture of No. 92 gasoline and two-stroke engine oil.
2. The volume ratio of gasoline and oil during the running-in period of the new machine is 25:1.
3. After the running-in period, the volume ratio of gasoline and oil is 50:1.
4. Special attention: gasoline and engine oil must be pre-mixed and stirred evenly, and then poured into the fuel tank.
5. The outboard motor must be started in water, do not start the engine on shore.
6. Loosen the vent screw on the fuel tank cover counterclockwise when starting.
7. When the outboard motor is started, the emergency flameout rope should be inserted, and the other end should be placed on the wrist or belt.
8. The running-in period is about 10 hours or a month, and during the running-in period, do not drive with a high accelerator.
9. Replace the gear oil after the running-in period, and the second replacement time is after 100 hours or about six months.
10. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
