UAYESOK VHF Marine Base Antenna 48 Inch Fiberglass Waterproof Boat Antenna W/7m RG-58U Cable Adjustable Ratchet Fixed Mount

UAYESOK VHF Marine Base Antenna 48 Inch Fiberglass Waterproof Boat Antenna W/7m RG-58U Cable Adjustable Ratchet Fixed Mount

$ 69.99 USD
$ 69.99 USD $ 69.99 USD
Sale Sold out
abs-2

  • Pretuned for all marine band frequencies,increases reception and range of radio; widely used in boat and offshore, motor boat, cruiser, sailboat, yacht, Truck, RV, Cruise Ship,Kayaking,etc.
  • Compatible With Cobra,Icom, uniden, Standard Horizon, HYS, Retevis Marine Floating VHF Radio and Marine Fixed Mount Radio; For Icom, Kenwood, Motorola, Yaesu/Vertex Standard, Uniden, Wilson, Marantz Handheld or Fixed Mount VHF ham radio.

abs3

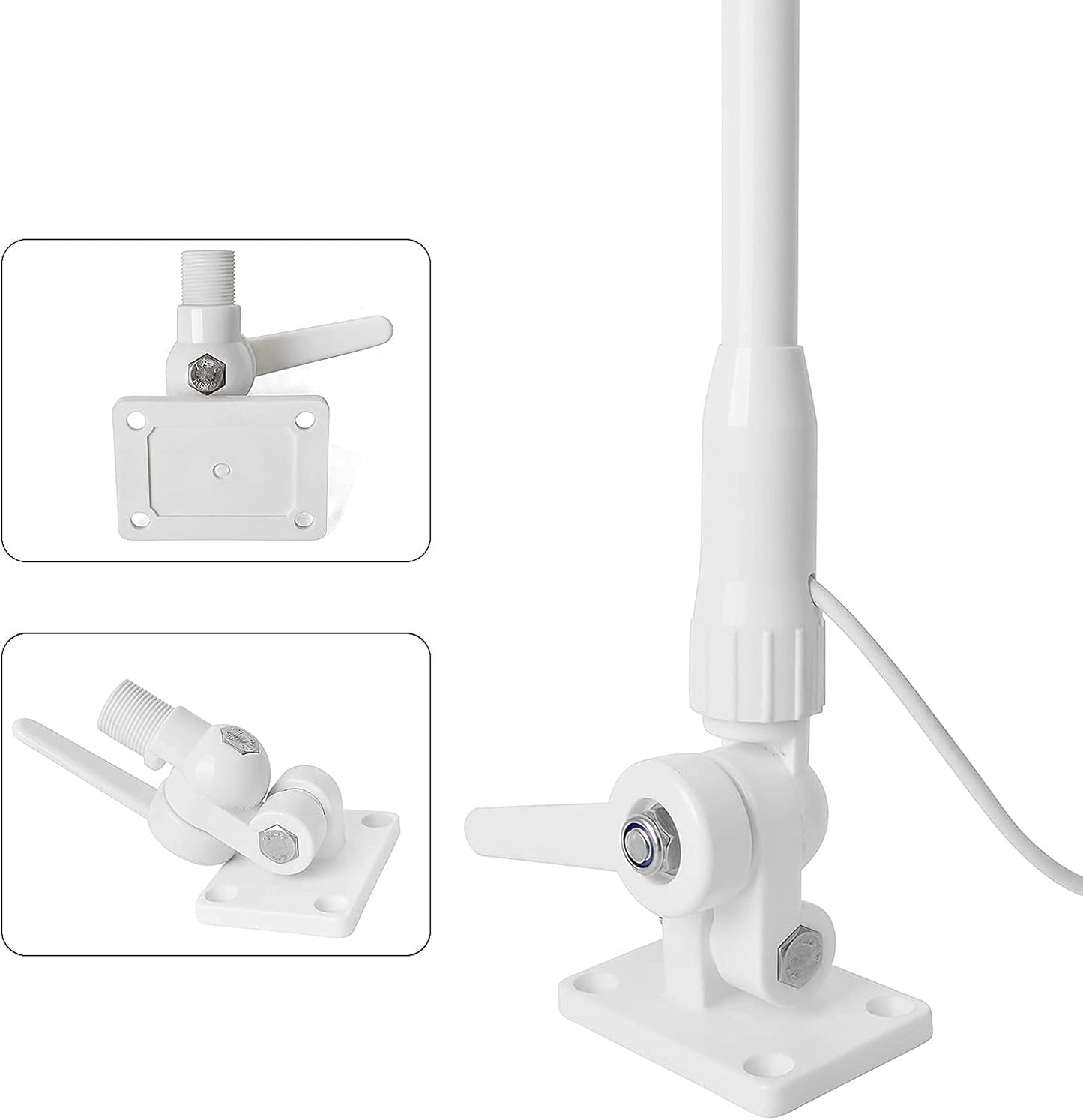

  • 180 degrees adjustable Nylon ratchet mount,strong corrosion resistance.
  • Installed in the deck or side mounting on slanted level surfaces.

abs4

  • Package Including: 1*VHF Marine Fiberglass Antenna; 1*Marine Antenna ratchet mounting kit; 1*7m RG-58U coaxial cable
  • UAYESOK Store(If you have any questions about the product, we'll be happy to serve you,We will reply to you within 24 hours)

ELECTRICAL SPECIFICATIONS and MECHANICAL SPECIFICATIONS

Frequency 156-163MHz
Impedance 50 Ohm
VSWR Nominally 1.5:1 at 159.5MHz
Gain 3dBi
Polarization Vertical
Maximum Power Input-watts 50W
Band width 5MHz,Within 2.0:1 VSWR
Horizontal Beam Width 360°
Vertical Beam Width 58°
DC Ground No DC Ground
Termination PL259
Cable Length/Type 7m/RG-58U
Height 110±5 CM
Weight 375g
Radome material Fiberglass
Ferrule Material ABS
159V
159V01
159V02
Customer Reviews
4.1 out of 5 stars 122
4.2 out of 5 stars 35
4.7 out of 5 stars 16
Price $36.99 $41.99 $36.99
Gain 2dBi 2.5dBi 2.5dBi
Length 6.5" 15" 13.4"
Whip Rubber Stainless steel Stainless steel
Sell 36.99 36.99 36.99
  • [ELECTRICAL SPECIFICATIONS] Frequency: 156-163MHz; Impedance: 50 Ohm; VSWR: Nominally 1.5:1 at 159.5MHz; Gain: 3dBi; Maximum Power Input-watts: 50W;

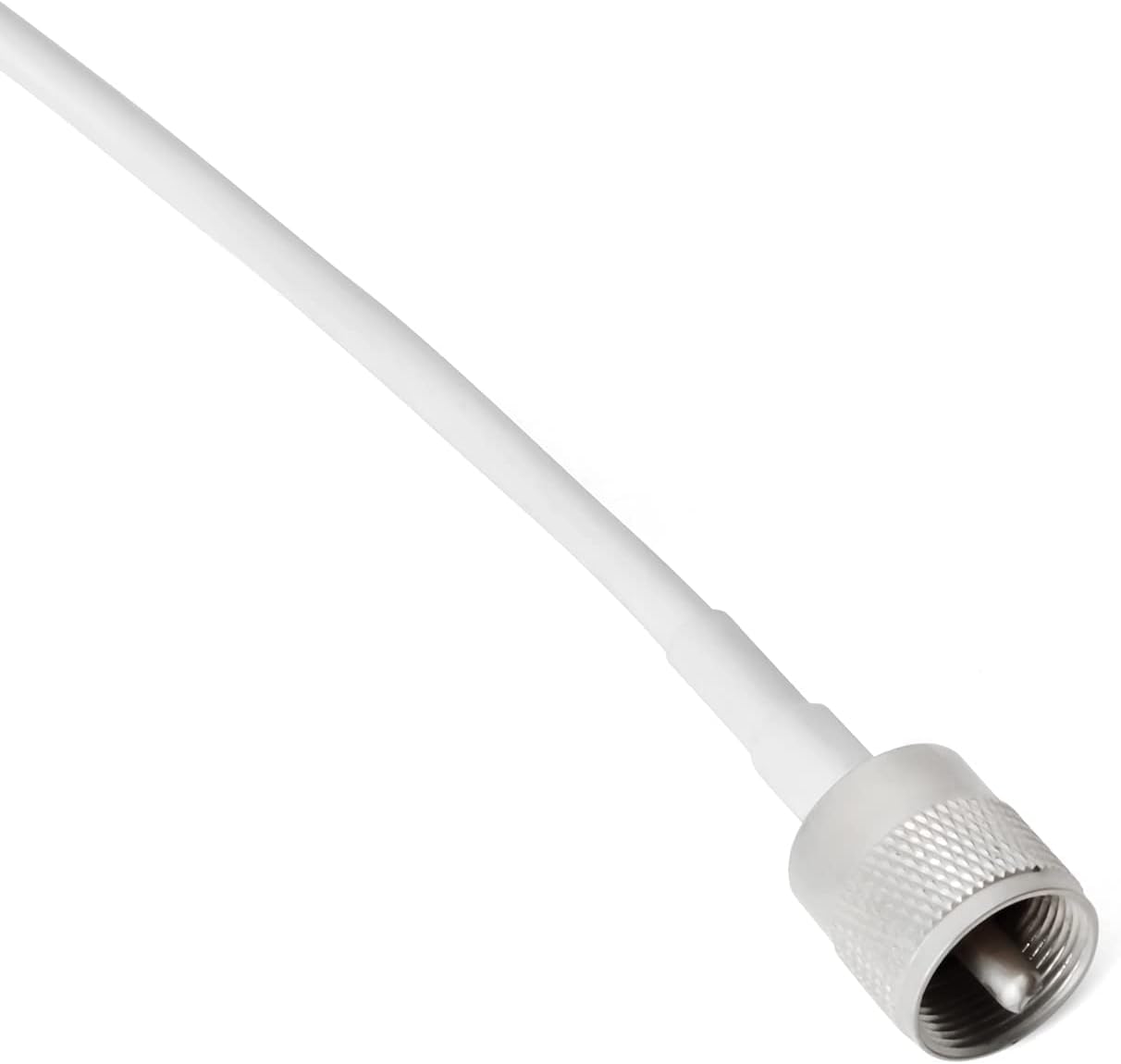

  • [MECHANICAL SPECIFICATIONS] Height: 110±5 CM/44inch; Termination: PL259; Cable Length/Type: 7m Low loss RG-58U coaxial cable(white); Weight: 375g
  • Anti-Corrosion Materials, fiberglass construction, smooth and high gloss finish, long-life use
  • 180 degrees adjustable Nylon ratchet mount, sturdy and durable, easy to Install and operate
  • Pretuned for all marine band frequencies, increases reception and range of radio; widely used in boat and offshore, motor boat, cruiser, sailboat, yacht, Truck, RV, Cruise Ship,Kayaking,etc.
  • Compatible With Cobra,Icom, uniden, Standard Horizon, HYS, Retevis Marine Floating VHF Radio and Marine Fixed Mount Radio; For Icom, Kenwood, Motorola, Yaesu/Vertex Standard, Uniden, Wilson, Marantz Handheld or Fixed Mount VHF ham RADIO
› See more product details
Antenna marine antenna
Brand UAYESOK
Color White
Number of Channels 1
Impedance 50 Ohm
Maximum Range 7 Meters
Manufacturer Quanzhou Hai Mao Wei Communication Co., Limited
Number of Items 1
